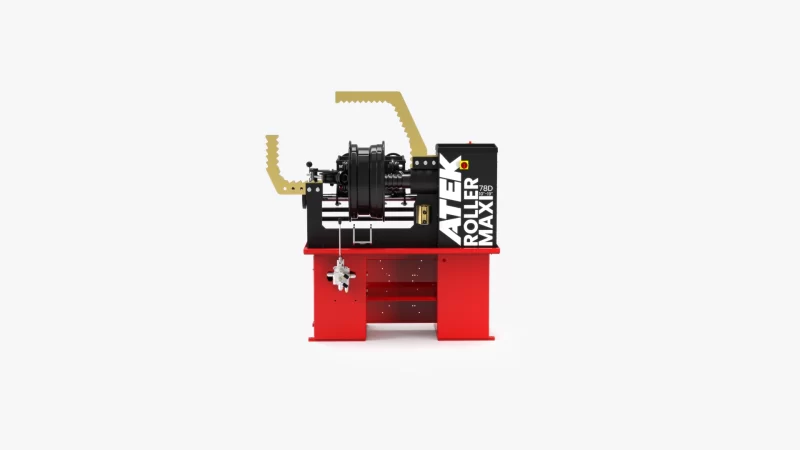

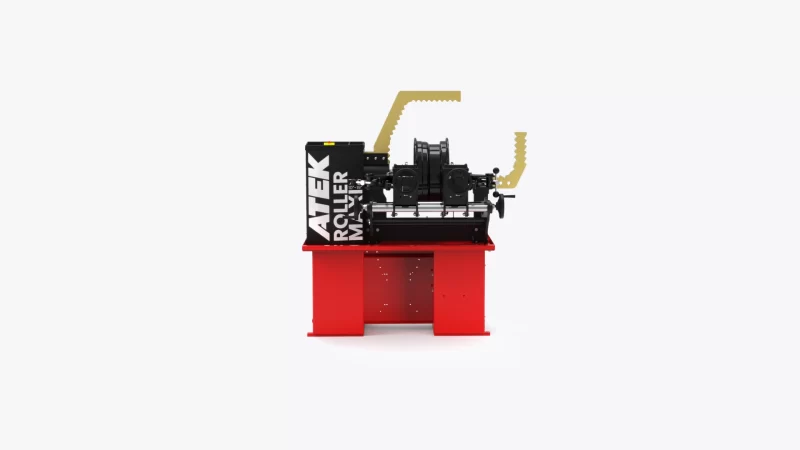

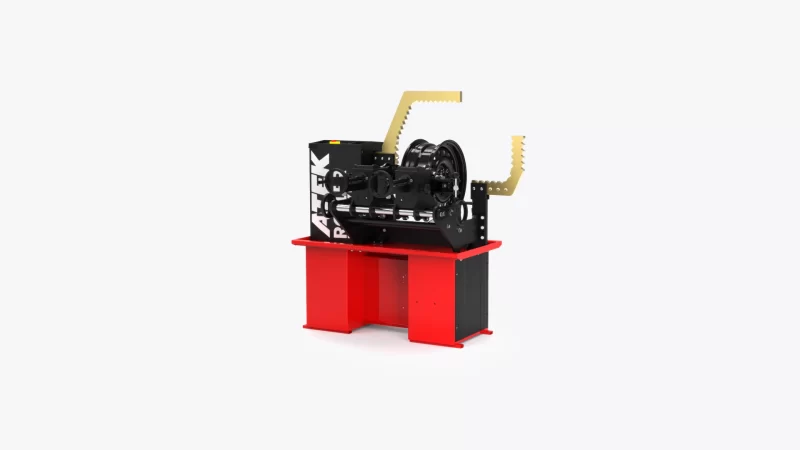

König Roller 78D
| SKU | 78D 00 000 |
|---|---|
| Rim Diameter | 10"-19" |
| Rim Type | Alloyed, Steel |
| Measuring Type | Manual |
| Straightening Type | Squeezing |
| Rotation Speed | 98 rpm |
| Weight | 368 Kg |
| Dimensions | 1378x1130x1480 mm |
| Package Sizes | n/a |
Fully Automatic Straightening
The fully automatic operating system allows you to perform rim straightening operations in the fastest and most precise manner. The automatic straightening feature minimizes operator intervention and speeds up the workflow.
Wide Rim Compatibility
This machine, suitable for rim diameters between 10" and 19", delivers excellent performance for both aluminum and steel rims. Its ability to accommodate different types of vehicles allows you to perform a wide range of rim straightening operations in your workshop.
Squeezing Type Straightening
The squeezing type straightening mechanism straightens rims precisely and safely. This mechanism ensures excellent results while preserving the structural integrity of the rims.
Reliable Performance
With its robust construction and advanced technology, the König Roller 78D offers long-lasting use and reliable performance. This machine optimizes workflow in your workshop and enhances customer satisfaction.
Manual Measurement
The manual measurement system allows the operator to monitor the process and make adjustments at every stage, ensuring the best results. This system ensures that the rim is straightened accurately.
Reducer Design
The geared motor provides greater power and efficiency in rim straightening operations. This feature offers a significant advantage, especially when processing heavy and large rims.
Compact and Durable Design
Measuring 1378 x 1130 x 1480 mm and weighing 368 kg, this machine occupies minimal space in your workshop due to its robust structure and compact design. Its construction from durable materials ensures long-lasting use and reliable performance.
High Rotation Speed
The 98 rpm rotation speed enables fast and effective rim straightening operations. This high speed optimizes your work processes and saves time.
Easy to Use
With its ergonomic design and user-friendly interface, the machine is very easy to use. The simple control system allows operators to adapt quickly and minimizes training time.
The option for a single-phase motor or a 24V DC motor is available.
| SKU | 78D 00 000 |
|---|---|
| Rim Diameter | 10"-19" |
| Rim Type | Alloyed, Steel |
| Measuring Type | Manual |
| Straightening Type | Squeezing |
| Rotation Speed | 98 rpm |
| Weight | 368 Kg |
| Dimensions | 1378x1130x1480 mm |
| Package Sizes | n/a |
